Home > Products
Portable electromagnetic drill & tapping machine
(Speed changing could be done while running)

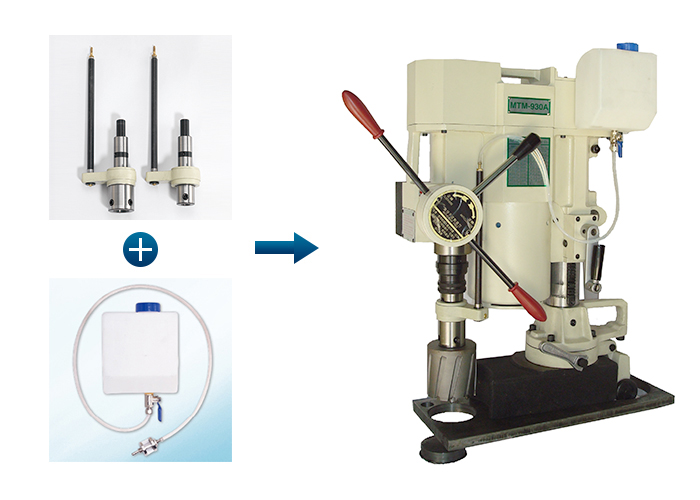

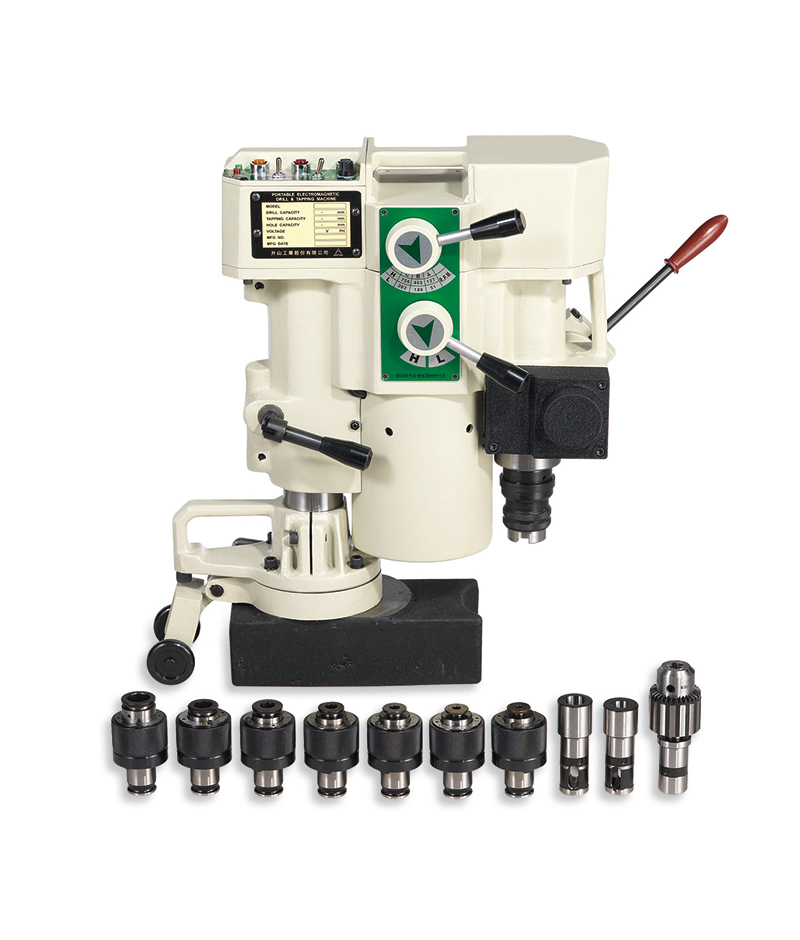

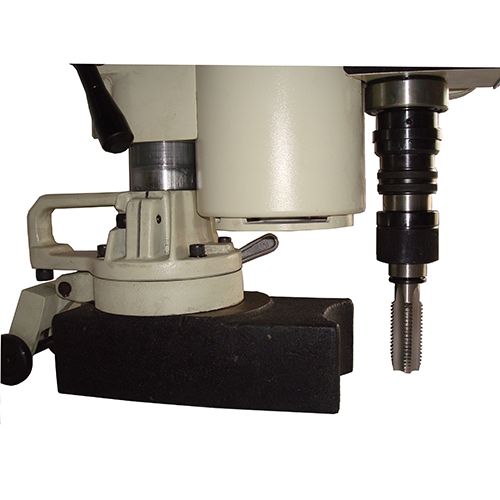

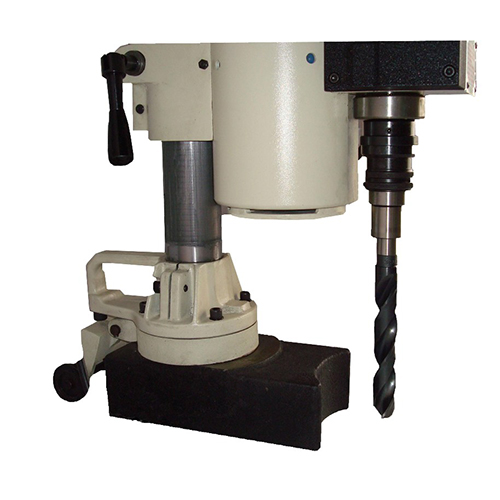

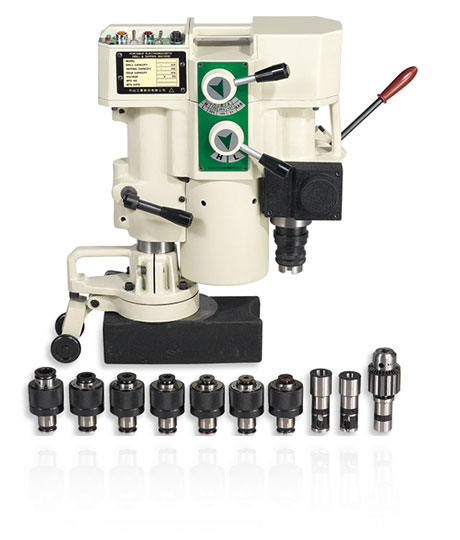

MTM-930A
Product Features
  • The rovolving speed is changeable during the machine is being operated. The gears are safe absolutely.
  • The total maximum height is 570m/m. Design of motor and gear box makes the point gravity center become only 280m/m. As the center of gravity is quite low and hard to be fallen, the magentic foundation can attain its function and efficiency.
  • The distributor disc is located on the top of machine which prevent it from being fallen or destroyed.
  • MTM-930A & MTM-922A with six-step speed variable (max. revolving speed: 756min revoling speed:51) depends on the hardness of processed objects and size of hole which makes the operator more comfortable to select the revolving speed.

Specifications
Model MTM-922A MTM-930A MTM-940A
Drill Capacity 1/4"~7/8"
6Ø ~22Ø		 1/4"~1-1/4"
6Ø ~32Ø		 5/8"~1-1/2"
16Ø ~38Ø
Tapping Capacity 3/8"~7/8"
10 Ø ~22Ø		 3/8"~1-1/8"
10 Ø ~30Ø 		5/8"~1-1/2"
16 Ø ~38Ø
Power 220V
3-Phase		 220V
3-Phase		 220V
3-Phase
HP 1-1/2 2 2-1/2
R.P.M. 756 456
303 186
127 51 		756 456
303 186
127 51 		686 404
268 165
165 97
65 38
Max Depth 100 100 130
Body Stroke 150 150 200
Transvers al Move 20 20 20
Turning Degree 330° 330° 330°
Electro Magretic 126x240 135x280 155x280
Electro Magretic Force 2000kgs 2500kgs 3000kgs
Height 570 580 730
Torsion Fixture Standard Fitting 5 7 8
Drill Sleeve Standard Fitting 2 3 3
Fittings Weight 5 7 16
Machine Weight 60 70 100
* These specifications and shape may be changed for improvement without prior notice.
----------------------------------------------------------------------------------------------
Portable electromagnetic drill & tapping machine
MTM-250
Product Features
  • With circuit protection of breaking for motor, once any wire of three phases power source is broken off, this unit could cut off current to motor to prevent motor from being burn out.
  • With Voltage indicator, users could know power condition any time.
  • With magnet reversal device to back off magnetic hysteresis quickly, so that users could move this machine easily.
  • The seat of drilling handles is adjustable, users could adjust the angle of drilling handles for convenience of working.
  • With withdraw free and withdraw end function for tapping. Depends on different needs of different work-pieces, users could choose one for working.
  • With special design of machine body and tube of main spindle, the stroke of such a small machine could reach 100mm.
  • Drill sleeves、tapping adaptors and borer holder are all with rapid adaptors, very convenient for replacement of cutters.
  • Tapping adaptors with torsion control, tap bits are protected from being twisted off.

Specifications
Model MTM-160 MTM-250
Drill Capacity 1/8"~3/4"
3~20mm		 1/8"~1"
3~25mm
Tapping Capacity 3/16"~5/8"
5~16mm		 3/8"~7/8"
10~22mm
Power 220V
3-Phase		 220V
3-Phase
HP 1 1-1/4"
R.P.M. 705 405
100 58 		705 405
100 58
Freeding Stroke 100mm 100mm
Body Stroke 100mm 100mm
Transversal Move 15mm 15mm
Turning Degree 180° 180°
Magnetic 190x85x54mm 200x112x78mm
Magnetic Force 900kgs 1500kgs
Height 450mm 480mm
Torsion Fixture Standard Fitting 5 6
Drill Sleeve Standard Fitting 2 3
Fittings Weight 3 8
Machine Weight 29kgs 36kgs
* These specifications and shape may be changed for improvement without prior notice.
